Kodiak packers

Land rollers that offer variable use in No-till and Till farming technologies.

Land rollers and packers are used for probably the simplest operations in agricultural mechanization. Nevertheless, they offer tons of great potential to both tillage and no-tillage technology.

Variable use of the machines enables them to start already in spring with top soil preparation and end in the autumn after harvest with stubbles and soil packing in a simple way.

Nowadays it is most important to choose the right diameter with the right profile to gain as much as possible. Or simply connect it to any other tillage machinery to increase finish packing.

Drum profiles

Rocks pushing to the ground, surface compaction, solid profile, capillarity improvement, application after seeding or before seeding, moisture loss prevention, clods breaking, corn/sugar beet root pushing.

V-shape vertical (rings)

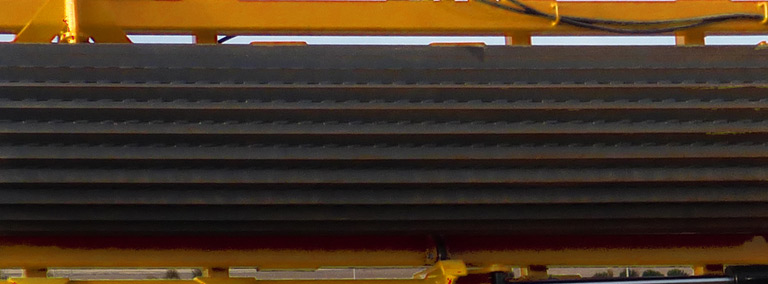

V-shape horizontal (lines)

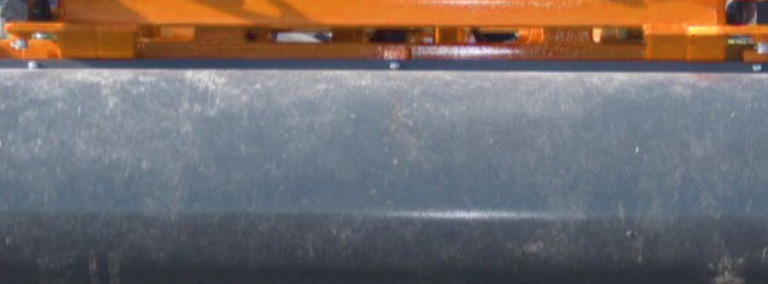

Plain packer

Extra sealed frame designed for heavy types of drum rollers.
Variable length - starting from 6.7m (3m also possible) up to 20m working width.
Independent working sections for surface copying and constant pressure.
Models are able to work in 2 different working width positions.
All models can be equipped with 700/750 mm diameter drum.
High quality rolling bearings placed inside of housing made by CNC.
Folding according to EU standards with 3m transport width.
Drums are possible to fill up with water-oil to increase packing weight for fine finish.
Two hole filling system with 50mm hole diameter.
Small to large sizes of drum diameter for different purposes.
High quality polyuretan color coating.
Hydraulic brakes.
It is possible to fill up the drums with water-oil to increase packing weight for fine finish.
A lot of variations of drum shapes for different agronomic purposes.

Full width working position

Half width working position

Transport position

Technical information

Kodiak Working width (m) Alternate working width (m) No.of sections Section sizes (m) Tires
6.7 6.7 6.7 3 2.1 / 2.5 / 2.1 400/60 - 15,3 14PR
9 9 7 5 1 / 2.75 / 2 / 2.75 / 1 445/45 R19’5 20PR
16 16 9 5 2.6 / 2.75 / 2 / 2.75 / 2.5 445/45 R19’5 20PR
12 12 7 5 3.5 / 3.7 / 2 / 3.75 445/45 R19’5 20PR
18 18 11 5 3.5 / 4.75 / 2 / 4.75 / 3.5 445/45 R19’5 20PR
20 20 11 5 3.5 / 4.75 / 2 / 4.75 / 3.5 445/45 R19’5 20PR
